30A PWM Solar Charge Controller for Sealed/Gel/Flooded/LiFePO4/Lithium Batteries 12V 24V Auto Matching Intelligent Regulator with Bluetooth APP Remote Monitor, 5V USB Port, 7 Load Modes, Blue
US$10.64
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by greekcomicsacademy.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$10.64
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by greekcomicsacademy.gr
Free 30-day returns Details
Product details
| Management number | 221087903 | Release Date | 2026/05/03 | List Price | US$10.64 | Model Number | 221087903 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- APP Remote Control: The 30A PWM Bluetooth solar controller supports wireless connection via the mobile APP (LiMu Solar APP, initial password: 666666), allowing for real-time monitoring of the charging system (including battery type, load mode, parameter configuration, and device status). Compared with traditional controllers, it greatly simplifies your operation and management.

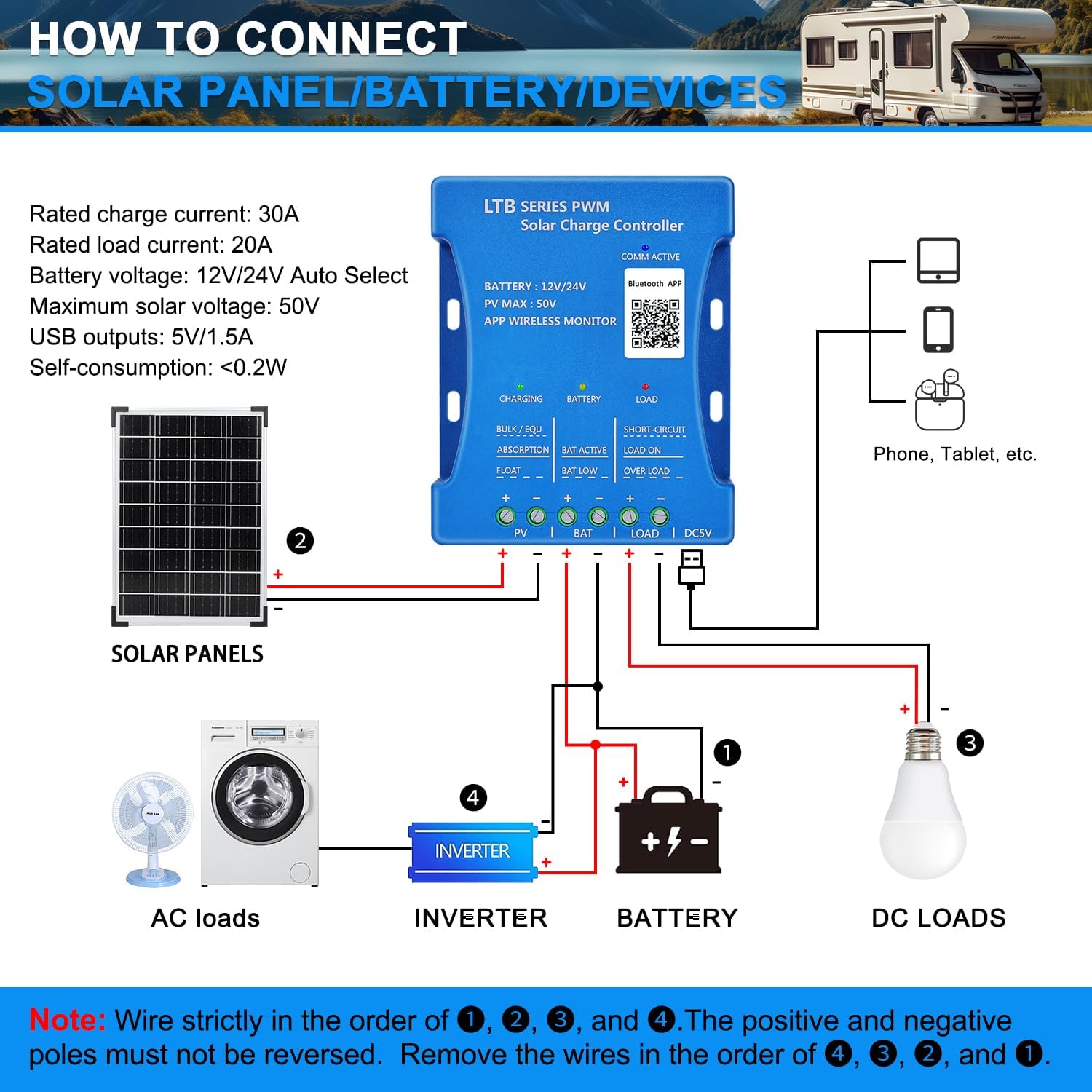

- How to Connect Solar Panel/Battery/Devices: First, connect the battery. The controller will automatically identify the battery type as 12V/24V. (During power-on, the red, yellow, and green LED indicator lights on the panel will flash simultaneously for 3 seconds. After that, if the battery is a 12V system, the yellow light will remain on. If the battery is detected to be a 24V system, the yellow indicator light will continue to flash for 3 seconds.) Then connect the solar photovoltaic panels and finally the load to complete the connection of the entire system.
- Auto Matching 12V/24V Battery: The 30A intelligent charging controller employs PWM three-stage charging technology. It can automatically detect the system voltage of 12V/24V batteries (applicable to non-lithium batteries) and adjust the charging parameters to ensure a safe and efficient charging process. (When using for the first time, please ensure that the battery voltage is sufficient so that the PWM controller can identify the correct battery type.)
- Compatible with 5 Battery Types: Our 30A solar panel controller fits for Sealed, Gel, Flooded, LiFePO4, Lithium and other battery types. On the battery type setting page, you can also customize the battery type. When changing different battery types, if the battery voltage is set to "AUTO" to enable automatic identification, the system will automatically restart the device after the setting is successful. After the restart, the device needs to be reconnected.
- 7 Load Modes: This 30A battery charge controller has 7 work modes, which are: Keep On(Load output controlled by battery voltage only); Manual(Manual load control); Light(Dusk to dawn mode); Light+Timer( Load output turned on during 1-23 hour after sunset); Light+Repeat(Light-controlled cycle interval timing); Repeat(24 hour cycle interval timing); Segmaints(Segmented real-time timing (up to 5 groups)). You can change the load mode through the APP interface, which is very convenient to use.
- Built-in Multiple Protections: This 30A intelligent PWM controller is equipped with various protections inside. It includes protection against overvoltage, overcurrent, load short circuit, low voltage, overvoltage, overheating, lightning protection, reverse connection, low battery level, etc. It provides comprehensive protection for your charging system to ensure its stable operation.operation.
- USB 5V/1.5A Port: At the lower right corner of the 30A controller, there is a USB 5V/1.5A output port. It can charge devices such as laptops, tablets, headphones, and mobile phones. It is plug-and-play and does not require an additional power supply unit or adapter, meeting your flexible charging needs.

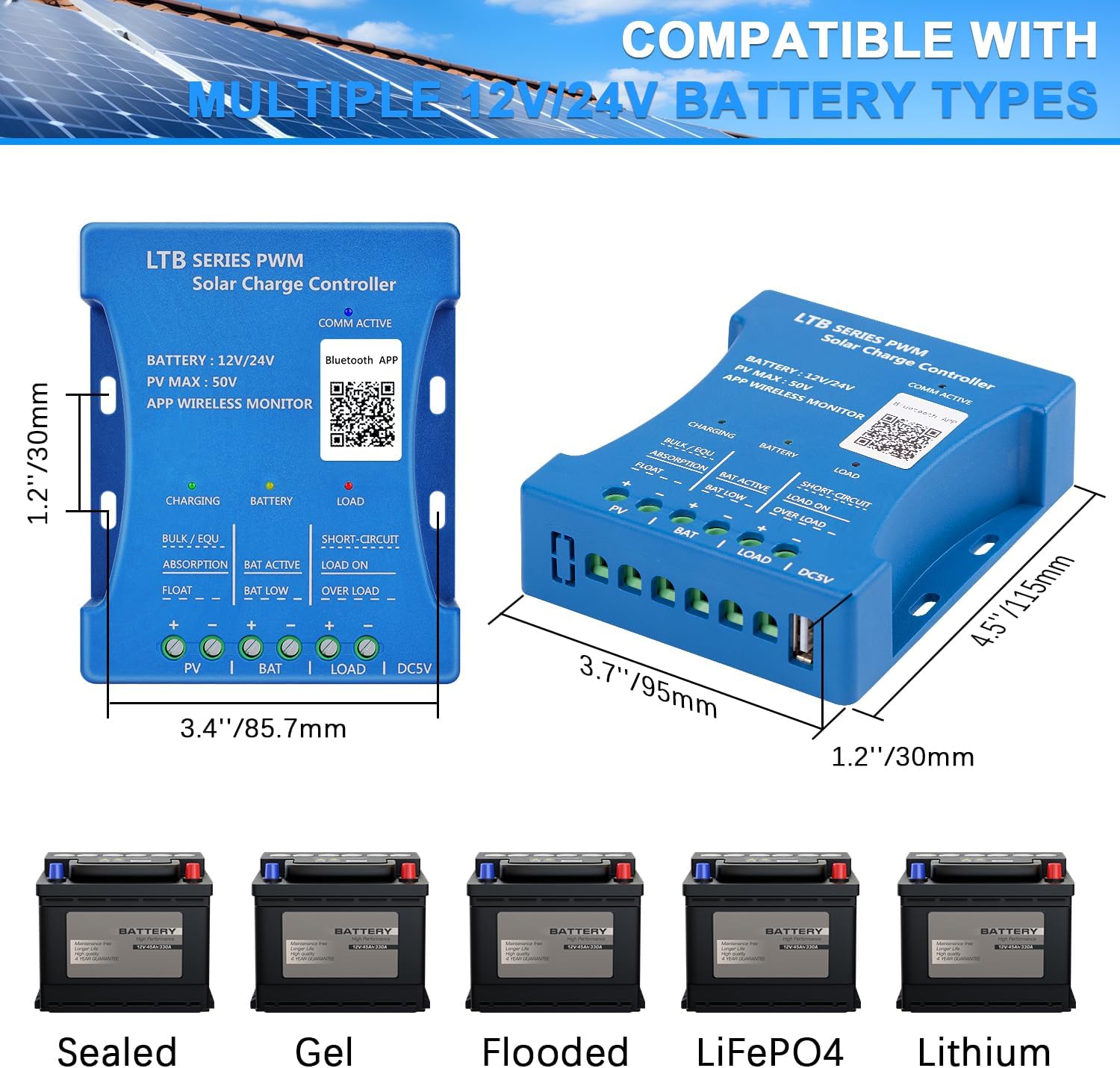

- Controller Parameters: Compact body dimensions: 4.5 "*3.7" *1.2 "(115x95x30mm); Installation hole size: 3.4 "*1.2" (85.7x30mm); Rated charging current: 30A; Rated load current: 20A; System voltage: 12V/24V automatic adaptation; Maximum photovoltaic voltage: 50V; USB outputs: 5V/1.5A; Self-consumption: <0.2W; Control mode: PWM pulse modulation technology; Wireless connection: Bluetooth APP software; Weight: 0.51lb(230g).
| Item Weight | 7.4 ounces |
|---|---|
| Manufacturer | TCEUMIK |
| Item model number | 30A Bluetooth PWM Solar Controller |
| Batteries required | No |
| Product Dimensions | 3.7 x 1.2 x 4.5 inches |
| Included Components | 30A Solar Charge Controller and Instruction Manual |
