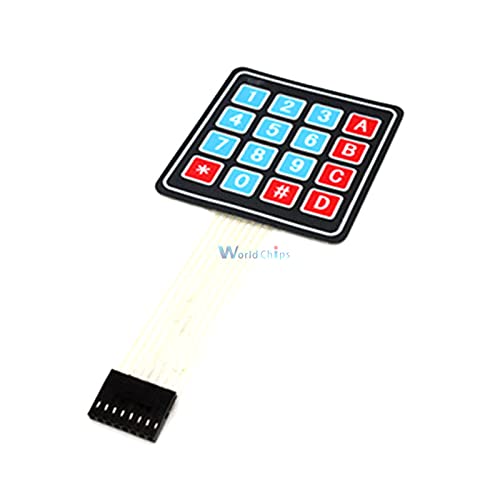

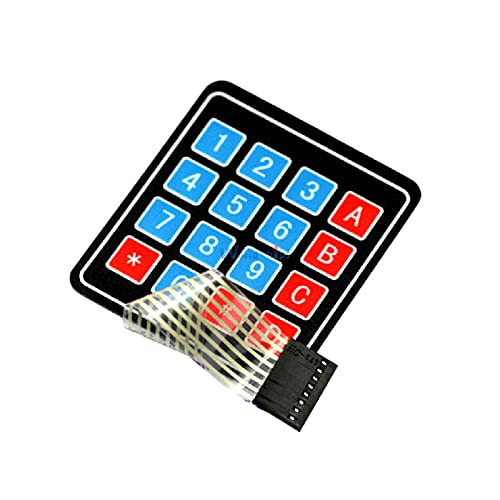

4 4 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad DC 35V 100mA 1W for Arduino 4X4 Matrix Keyboard
Product details
| Management number | 239369267 | Release Date | 2026/07/14 | List Price | US$2.42 | Model Number | 239369267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Contact resistance of 500 () Insulation resistance 100M () Key Operating Force 150-200N Rebound time 1 (ms) Life of 100 million (times) Operating Temperature 60 () 1, the electronic characteristics Circuit Rating: 35V (DC), 100mA, 1W Contact resistance: 10 ~ 500 (Varies according to the lead lengths and different from those of the material used) Insulation resistance: 100M 100V Dielectric Strength: 250VRms (50 ~ 60Hz 1min) Electric shock jitter: <5ms Life span: tactile type: one million times 2, the mechanical properties Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz) Switch travel: touch-type: 0.6 ~ 1.5mm 3, the environment parameters Operating temperature: -40 to +80 Storage temperature: -40 to +80 Temperature: from 40,90% to 95%, 240 hours Vibration: 20G, max. (10 200Hz, the Mil-SLD-202 M204.Condition B) Package: 1PCS X4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard
- 4 * 4 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad DC 35V 100mA 1W For Arduino 4X4 Matrix Keyboard
| ASIN | B0982CNVN9 |
|---|---|
| Brand | Midzoo |
| Style Name | Contemporary |
| Manufacturer | Midzoo |
| Button Quantity | 16 |
| Mfr Part Number | MiMODULE-13455 |
| Hand Orientation | Ambidextrous |
| Compatible Devices | keyboard |
| Enclosure Material | Acrylonitrile Butadiene Styrene |
| Additional Features | Travel |
| Keyboard Description | Membrane |
